Core system configuration
1）Power and battery
Drive: All-AC motor (walking + oil pump), fast response, maintenance-free, with regenerative braking (recharges energy during downhill/deceleration);
Battery: Lead-acid battery (low cost, requires water for maintenance, charging time 8–10 hours), lithium iron phosphate battery (mainstream, fast charging 1.5–2 hours, long lifespan, maintenance-free, supports charging anytime); Protection rating IPX4/IP54, suitable for dusty and humid environments;
Electronic control: Brand controllers, precise speed regulation, slope anti-slip, overheat protection.
2）Mast and working device: Wide field of vision mast (improves operational visibility), three-stage mast can lift up to 6-7m; forged one-piece forks, tilt forward/backward (commonly 6°/12°) to prevent cargo from slipping; double-sealed anti-leakage cylinders for smooth lifting/lowering; optional attachments such as side shifters, adjustable forks, and paper roll clamps.
3) Chassis and Safety: High-strength manganese steel frame, low center of gravity design; four-wheel balance, solid/non-marking tires; standard features include three sets of brakes (driving, parking, and emergency), audible and visual alarms, reversing camera, and load limiter; some higher-spec models come with automatic speed reduction when turning, electronic limiter, and anti-rollover system.
4) Ergonomics: Suspended seat, adjustable steering wheel, low noise (approximately 70–73 dBA); LCD instrument panel displays battery level and fault codes; optional protective roof and air conditioning for the cab; excellent overall sealing, dustproof and waterproof.
|
Product Packaging
1.5Ton Electric Forklift
2Ton Electric Forklift

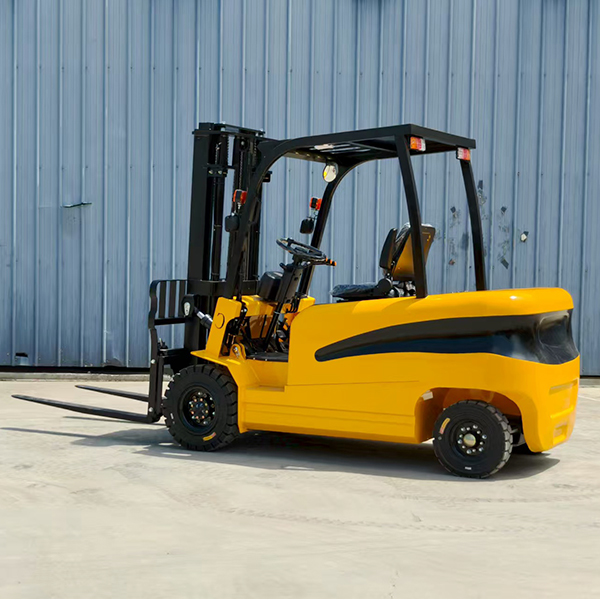

3Ton Electric Forklift
|
Comment & FAQ
1. Can you customize and design as the clients' requirement?
A: We have our own R&D and design team to expand the product lineCustomized service:
①Customize non-standard models;
②Customize color, logo and manuals;
③ Professional design plan.
2. How about the sample policy?
A: We can accept sample order to test the quality. But the sample and courier cost should be borne by customers.
3. Can you arrange the shipment for us?
A: Yes. When the order is completed, we will notify you, and we can also arrange delivery at the same time. There are LCL shipping and FCL shipping with different order deadlines, and the buyer can also choose air or sea shipping according to your requirements. The logistics company will notify you when your order arrives at your nearest sea or river port.
4. How will I know my order is complete?
A: After receiving the deposit, we will arrange the delivery immediately. After the order is completed, we will also send you the inspection picture of your order before delivery for your confirmation.
5. Are there any other products?
A: We offer a full range of forklifts: electric forklifts, diesel forklifts, gasoline/LPG forklifts, heavy-duty forklifts, off-road forklifts, electric stackers, electric pallet trucks, and fully electric stackers.
|
Product application
|
Product details

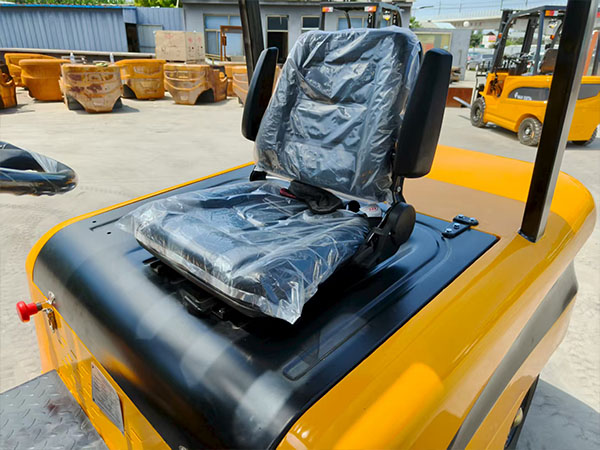

Ergonomic Comfort Seat

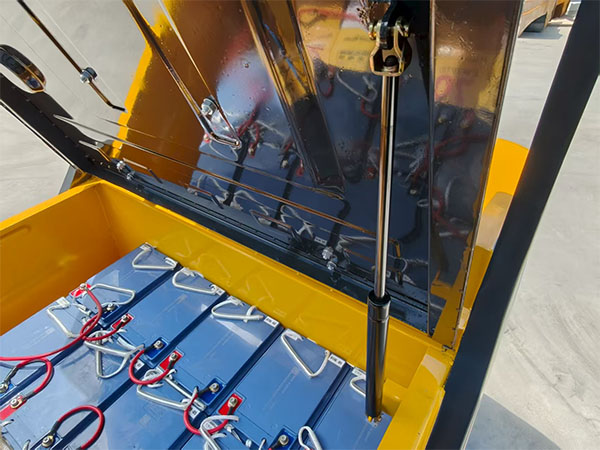

Internal battery block
Solid tires are more durable.

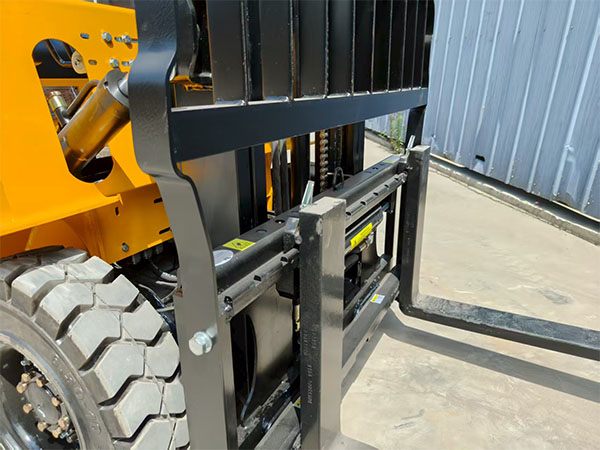

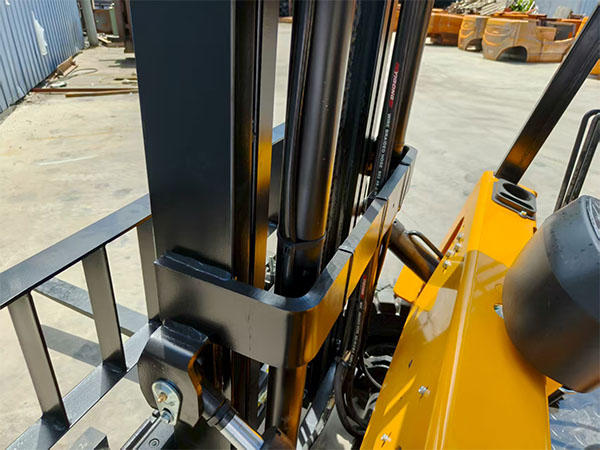

Thickened gantry
|
Data Sheet
Tonnage
| Load center distance | Standard lifting height | Maximum travel speed | Grade gradient under full load | Battery solution | Applicable scenarios |
1.5 ton
| 500mm | 3000mm | 14-16km/h | 15% | 48V Lead-acid/Lithium Battery | Lightweight small items, narrow aisle, e-commerce |
| 2.0 ton | 500mm | 3000mm | 16km/h
| 16% | 48V Lithium Battery (Mainstream)/Lead-acid Battery
| General warehousing, manufacturing production lines
|
| 2.5 ton | 500mm | 3000mm | 16km/h | 18% | 48V/80V Lithium Battery
| Medium-sized warehouses, semi-outdoor loading and unloading |
| 3.0 ton | 500mm | 3000mm | 16km/h | 18% | 80V/96V High-Power Lithium Battery
| Heavy-duty pallets, dock/industrial park short-haul |
1）Environmentally friendly and quiet: Zero emissions, suitable for industries with high cleanliness requirements such as food, pharmaceuticals, and cold chain logistics; noise level below 75 dBA, improving the workshop environment;
2）Economical and efficient: Electricity costs are far lower than diesel/gasoline; AC motors and lithium batteries reduce maintenance frequency, with annual maintenance costs only 1/3 of those of internal combustion forklifts;
3）User-friendly: Stepless speed regulation, clutchless shifting, easy for beginners; high low-speed torque, smooth start-up;
4）Optional intelligent features: Can be integrated into fleet management systems for location tracking, battery monitoring, fault warnings, and operational data statistics.
