Product Description
The 21-ton wheeled excavator is a medium-sized excavator, with a balanced power and digging force, capable of handling a certain scale of earthmoving operations while maintaining high flexibility. Travel method: It uses a rubber-tired chassis, and its key feature is that it can autonomously travel at high speeds on public roads without a trailer (typically reaching speeds of 20-40 km/h).
|

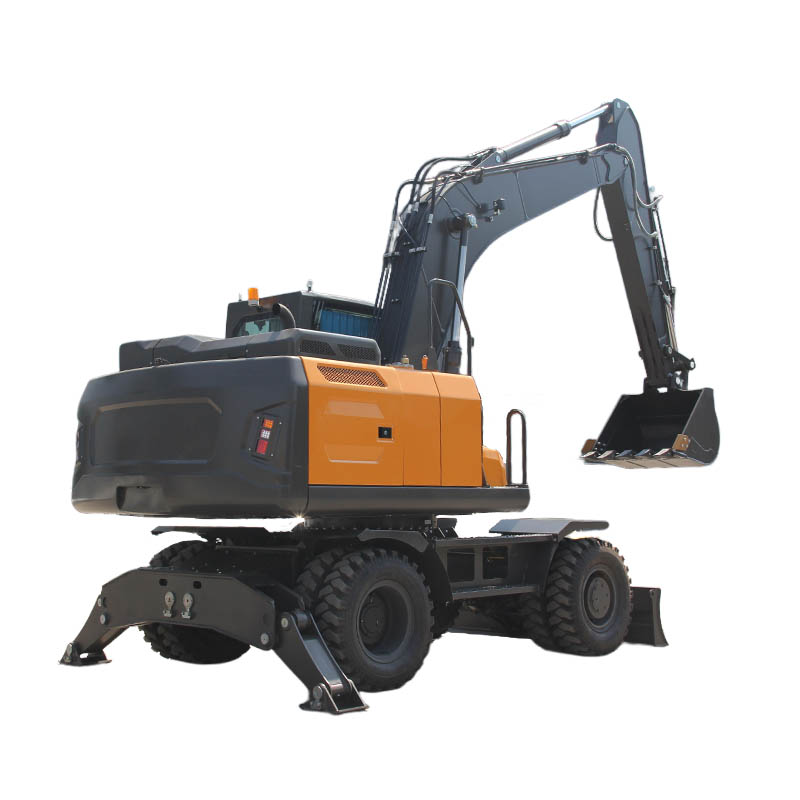

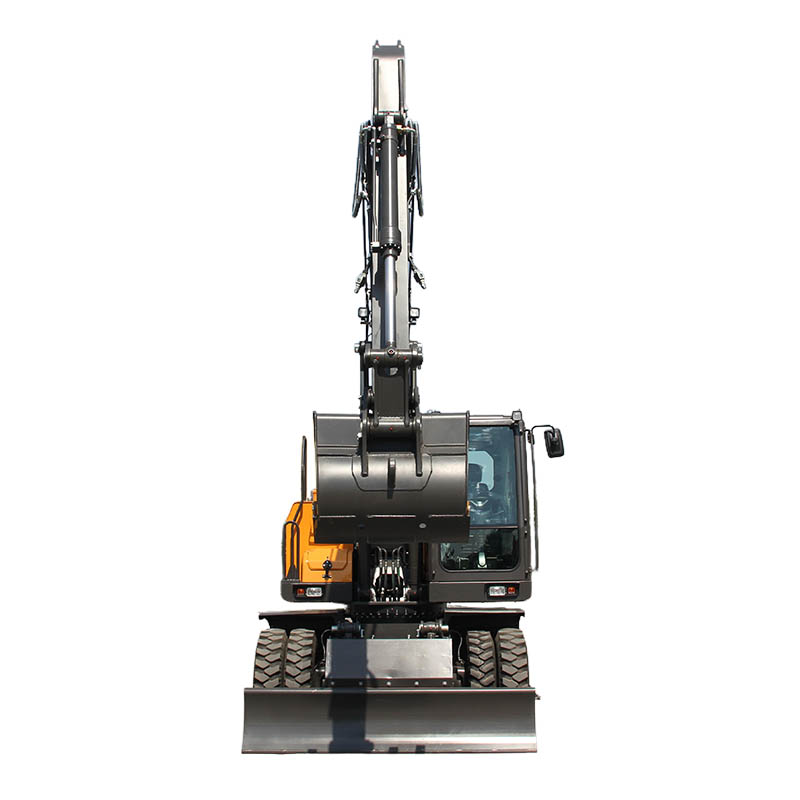

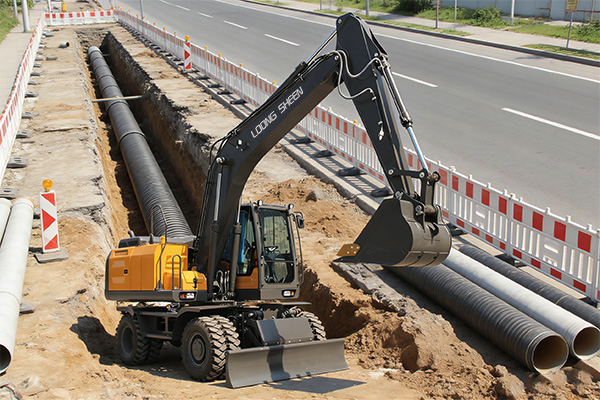

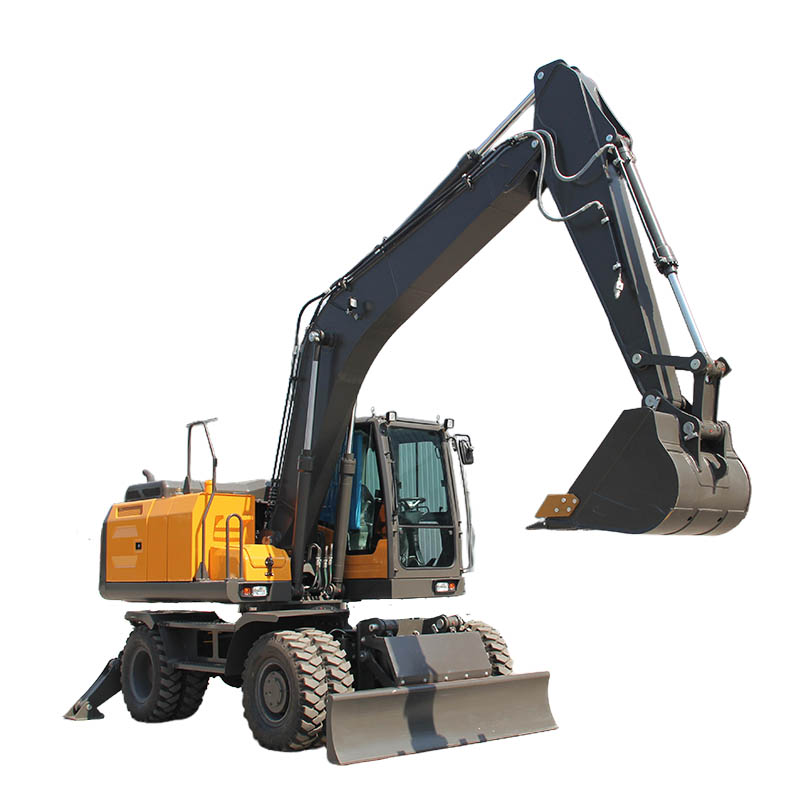

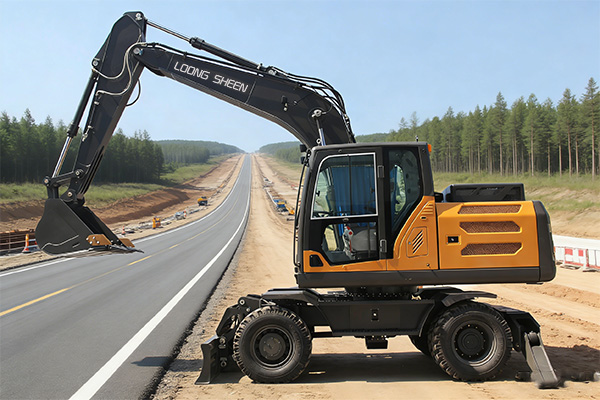

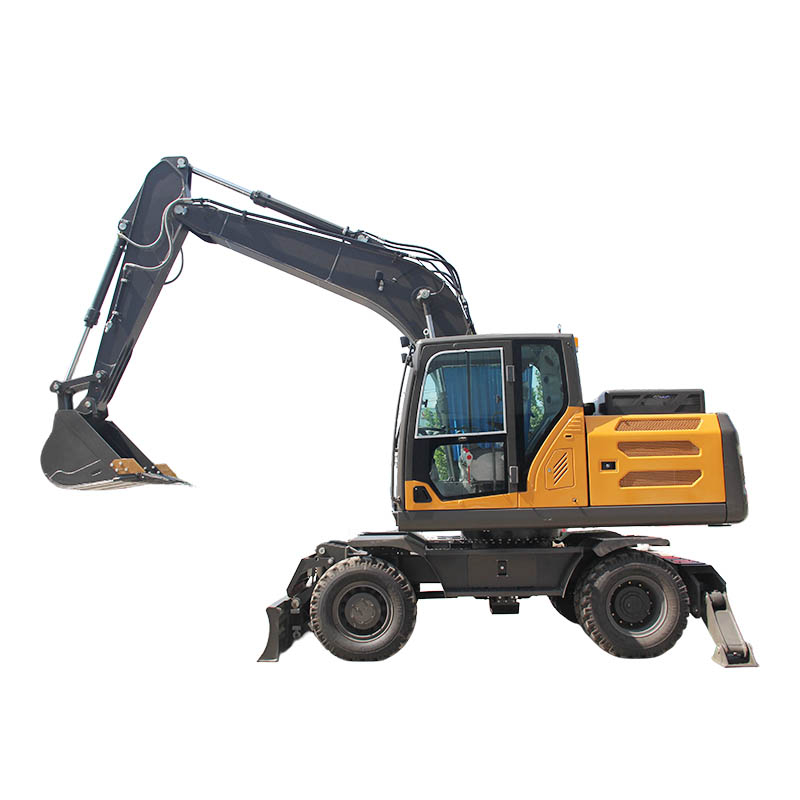

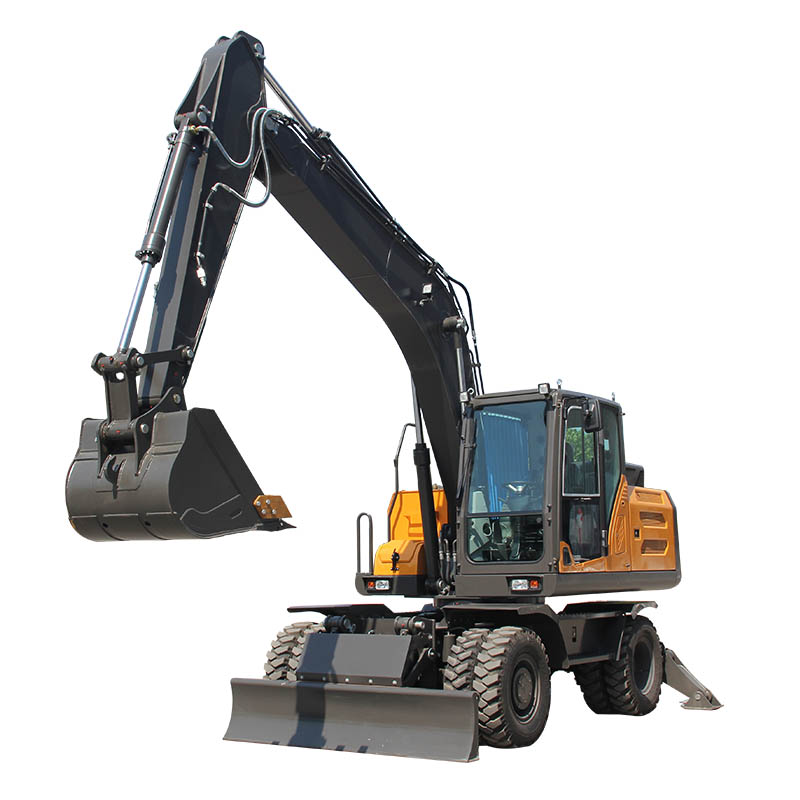

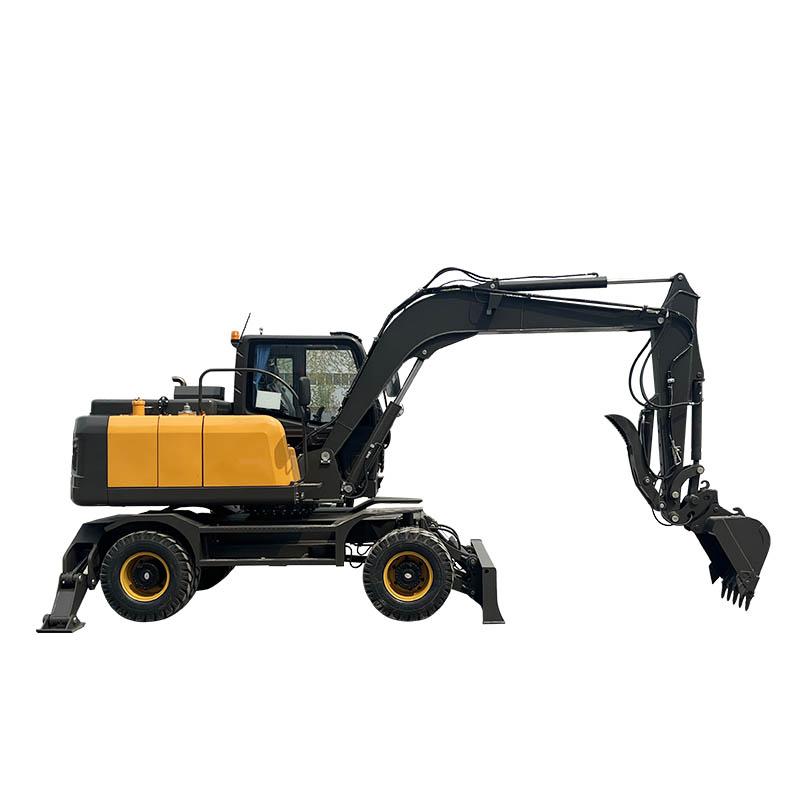

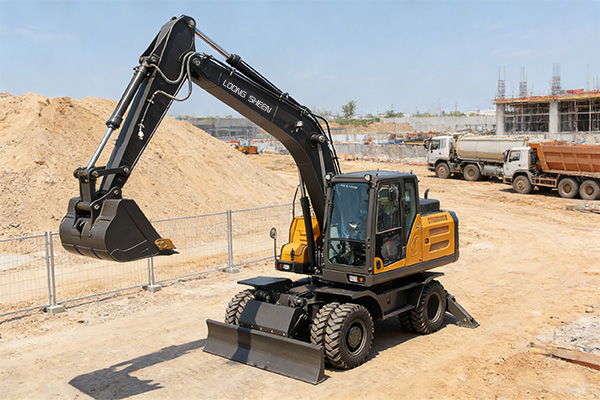

Product photos
|
Comment & FAQ
1. Why choose us?
A: We can offer you wide-range products like forklift, loader, excavator, skid steer loader, backhoe loader, road roller, motor grader, tractor, etc. So we can provide your ONE-STOP SERVICE during purchasing different products with high efficient..
2. What payment terms can we accept?
A: Normally 30% deposit in advance, 70% balance should be paid before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
3. How long is your warranty?
A: One year or 2000 working hours which occurs first.
4. How about our delivery time?
A: Usually it will take 15 - 30 days after receiving your deposit. But for standard products, we always have in stock and can deliver within 5 days.
5. Can we provide spare parts?
A: Yes, we can provide you the spare parts list if you need, welcome to contact us freely.
|
Company Profile
Shandong Loongsheen Heavy Industry Co.,Ltd is a professional heavy machines manufacturer and exporter concerned with the design,development and production kinds of machines. We have a branch company Shandong Loongsheen Import&Export Co.,Ltd. Our products is truck crane, excavator, road roller, skid steer loader and so on. We are located in Jining city Shandong province China, with convenient transportation access. Covering an area of 6,000 square meters, we now have over 600 employees and an annual sales figure that exceeds USD 8-15 million.
Five years professional experience in international trading and rich knowledge in construction machinery and heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers.
A well educated and friendly sales team with international vision, members of which can speak fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc.
Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price.
Excellent logistics services by sea, air, railway or road, ensuring timely delivery of consignments all over the world.
Comprehensive after-sales service, including one year warranty, spare parts supply, installment and maintenance, and training.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
We are looking forward to forming successful business relationships with new clients around the world in the near future.
We sincerely hope to cooperate develop together and build a good future with you. Loongsheen is your best choice for kinds of
machinery in China.
|
Data Sheet
| Bucket capacity (m³) | 1.1
| Maximum digging height (mm) | 10329
|
| Slewing speed (rpm) | 0-12 | Maximum unloading height (mm) | 7397 |
Maximum gradeability (°)
| 25 | Maximum digging depth (mm) | 6052 |
Maximum digging force of bucket (kN)
| 140 | Maximum vertical digging depth (mm) | 5682 |
| Maximum digging force of stick (kN) | 100 | Maximum digging radius (mm)
| 10283 |
Engine model
| 6BTAA5.9 | Minimum turning radius (mm) | 3458 |
| Power/speed (kW/rpm) | 153/2000 | Tail Swing Radius (mm) | 2412
|
| System pressure (MPa) | 10.00-20 | External dimensions (length x width x height) (mm) | 10006x2500x3515
|
|
Machine details

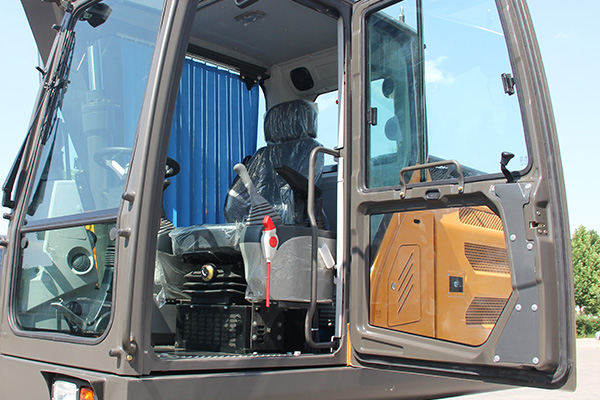

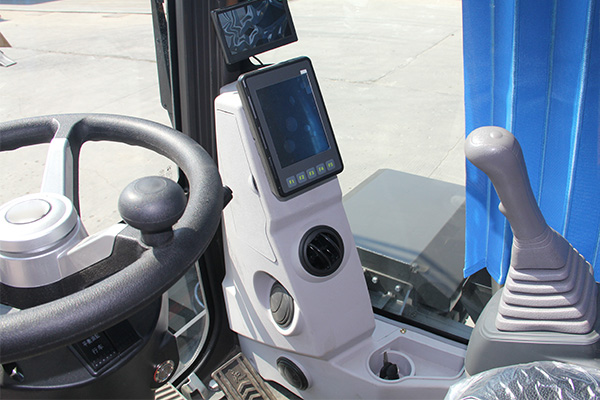

1）Hydraulic automatic transmission, constant power piston pump, imported ZF gearbox, wet axle, front outriggers and rear bulldozer blade, air conditioning, breaker piping, comfortable driving，Usually equipped with full hydraulic steering, comfortable cab, wide field of vision, and less fatigue on long-distance driving.

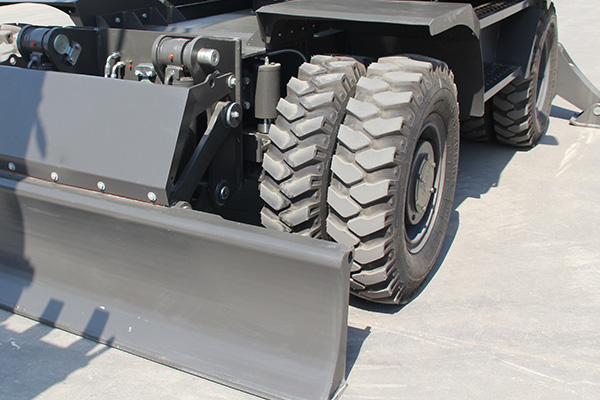

2）Thickened rubber tires with deep grooves increase ground friction, protecting the ground while effectively extending service life. The tires have even ground pressure distribution, making them more advantageous for working on highly compacted ground or temporary steel plates.

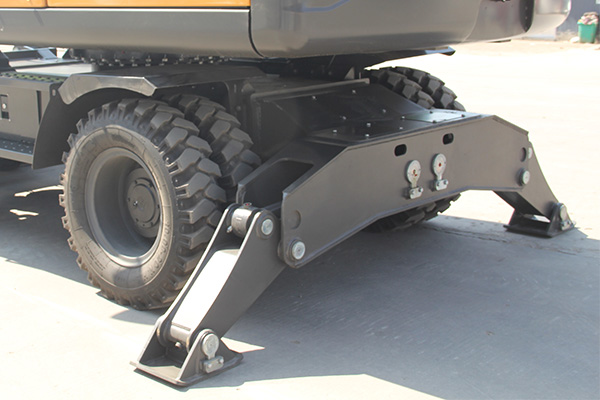

3）The rear foot support improves vehicle stability during driving; all four support angles are optional and can be customized with other features.

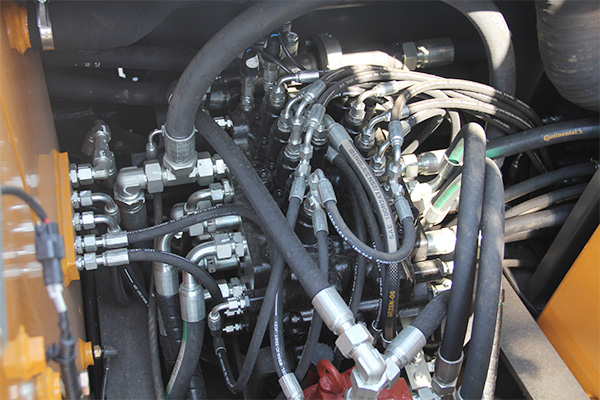

4）For convenient maintenance, the main hydraulic test ports and daily lubrication points are centrally located in easily accessible positions.

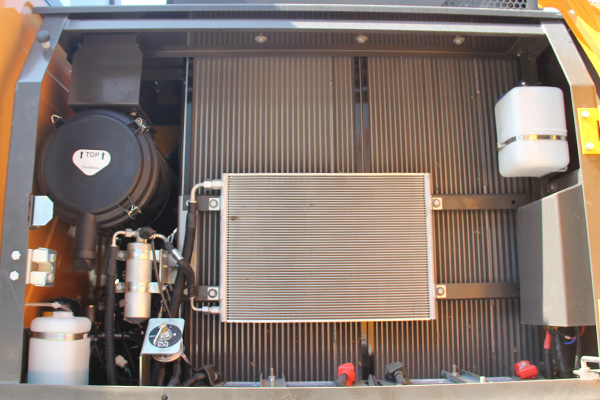

5）The engine hood and side doors can be opened at a large angle or completely, allowing for daily checks and replacements of engine oil, filters, coolant, etc., while standing on the ground.
Our company provides a wide range of customization services for excavators, including logo customization, color customization, engine customization, and various accessory combinations. We are committed to providing tailor-made solutions to meet the unique needs of our customers.
A variety of accessories are available.Use well-known brand engines, and can also provide engines that meet Euro 5 standards according to your needs to meet your needs.
First of all, we provide regional protection, which will provide you with enough profit space, we will provide after-sales service for our products within 1-3 years. We can provide some parts by air transportation, which is convenient and fast, and we will test them for you before leaving the factory to ensure the quality of the products. At the same time, we will provide you with free publicity in your country, sincerely hope that we can become the best partners.
