Product Description
1）Compact Size and Flexible Maneuverability
Small size and low center of gravity: Excellent stability, suitable for working in narrow, uneven terrain.
Retractable Tracks: Some high-end models are equipped with hydraulically retractable tracks, which can further narrow the width to pass through extremely narrow doorways or passages (such as interior doors and garden paths), and provide better operational stability when extended.
2）Tailless or Small Tail Swing Design
Tailless Swing: When the upper frame rotates, the counterweight will not exceed the width of the track frame, enabling 360-degree safe operation even when close to walls or obstacles, greatly improving working ability in extremely narrow spaces (such as corners and ditches).
Small Tail Swing: The counterweight's swing radius is much smaller than that of a standard excavator, providing superior maneuverability compared to medium and large-sized equipment.
3）CE/EPA engine, standard side-swing, tailless, tracked telescopic chassis, breaker piping, optional hydraulic quick-change device with adjustable hydraulic flow and pressure to adapt to different attachments.
|

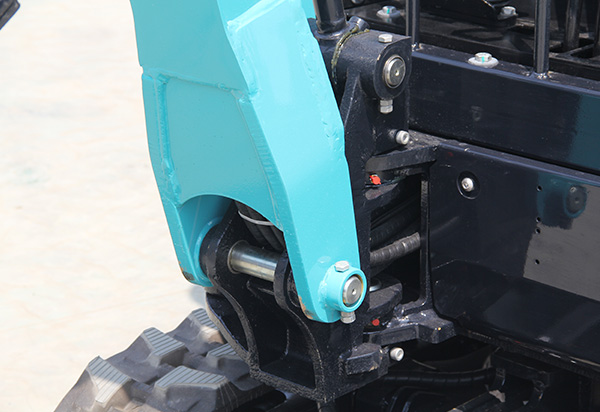

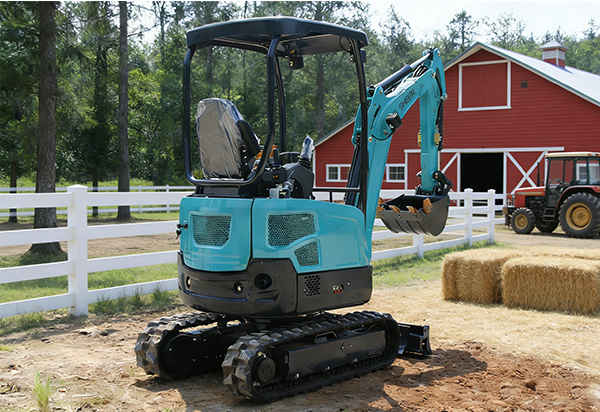

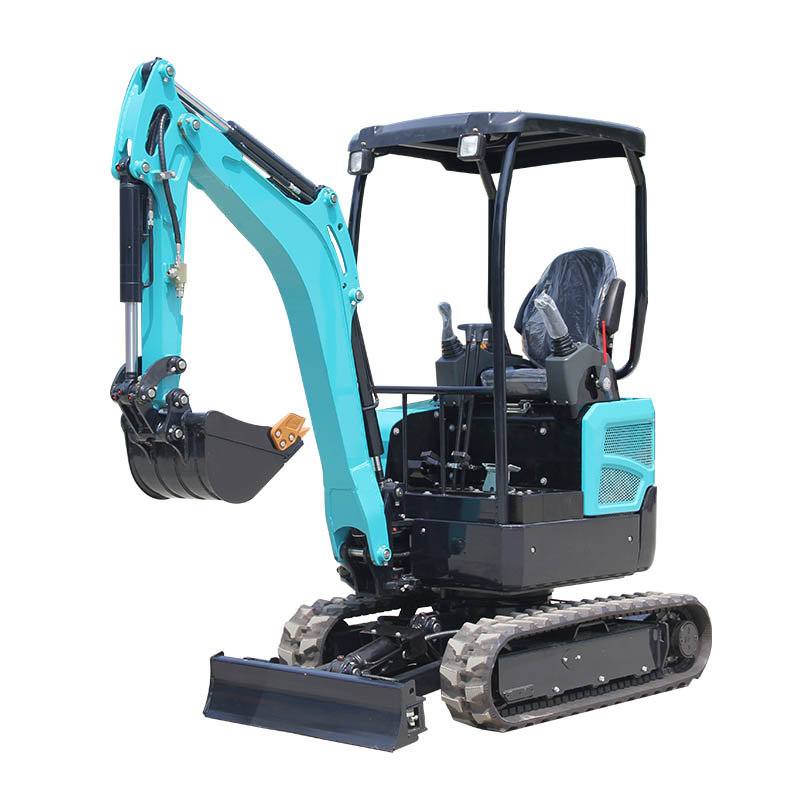

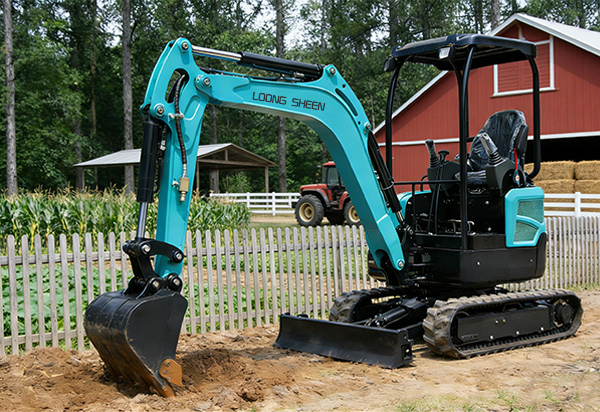

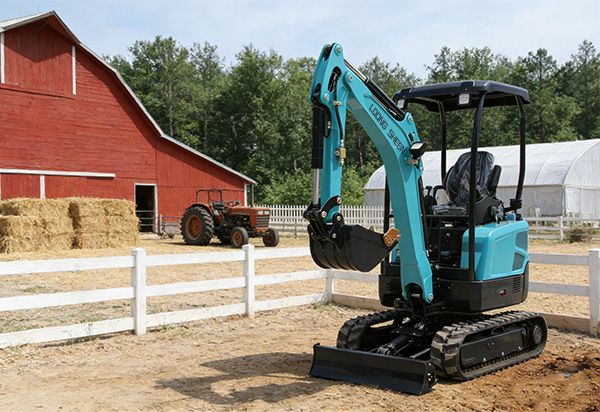

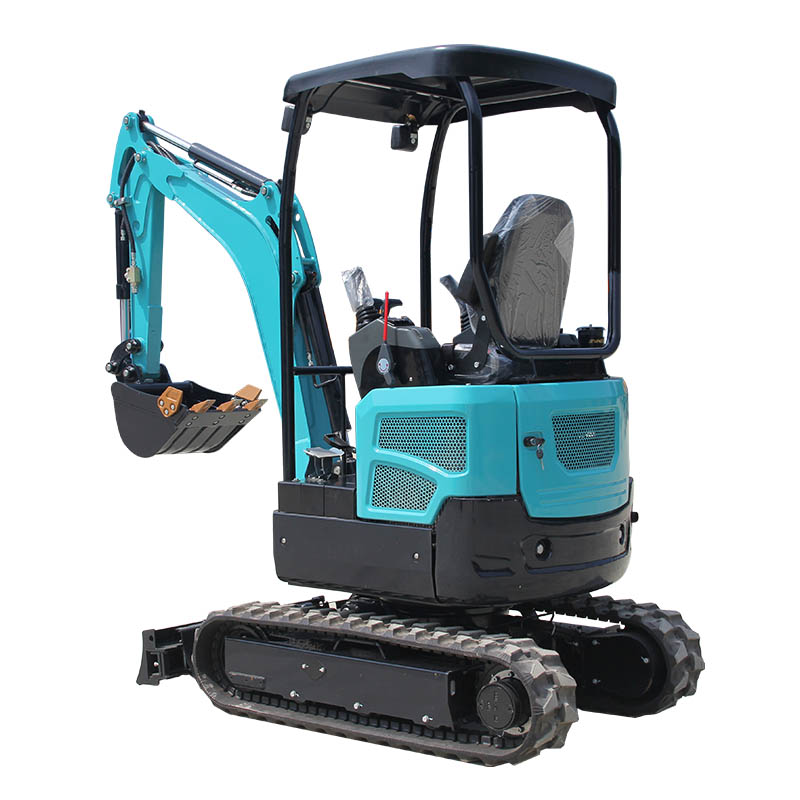

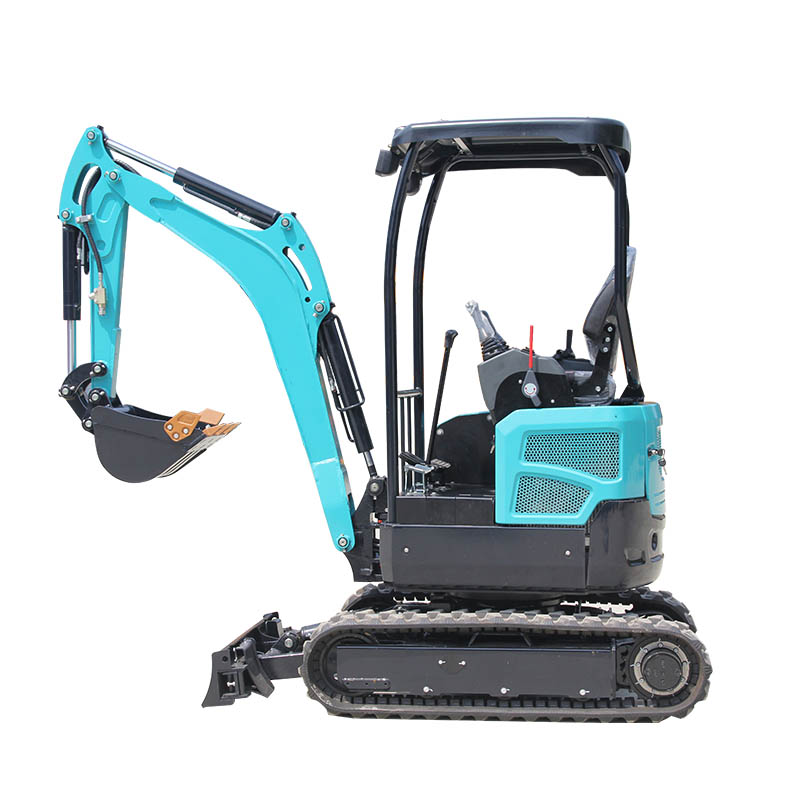

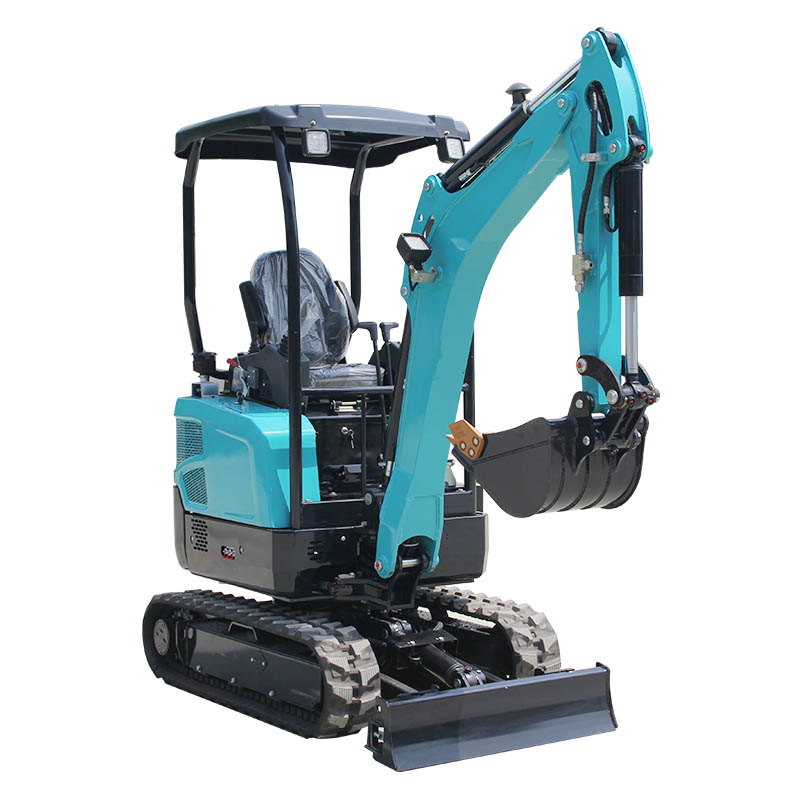

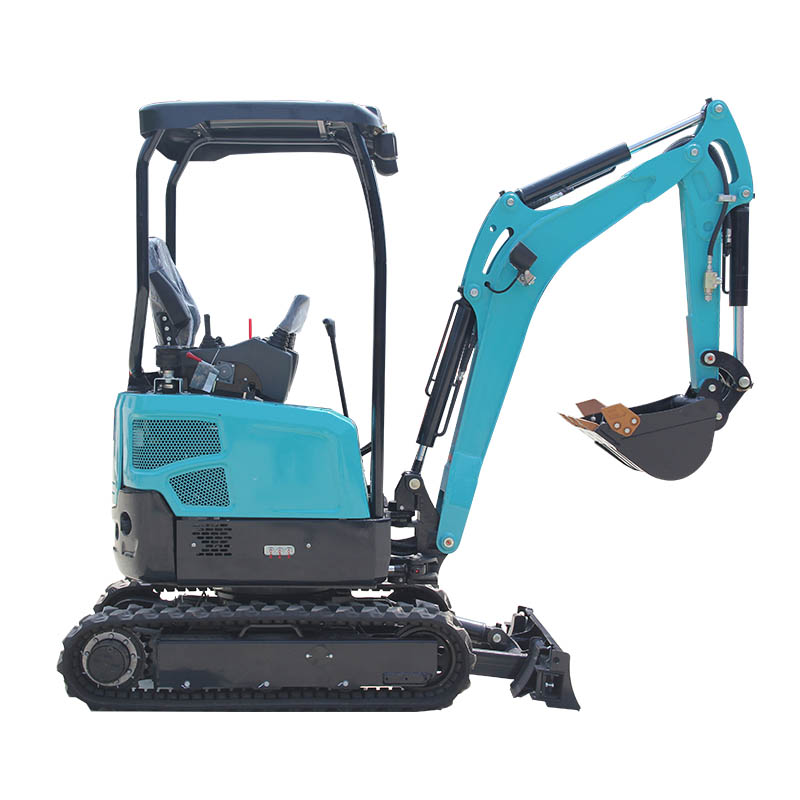

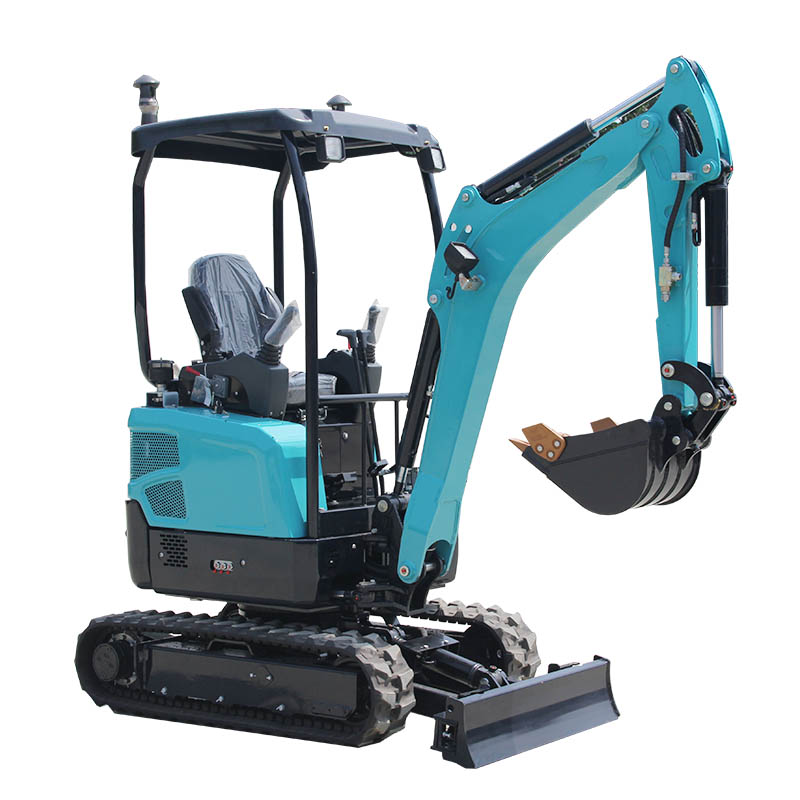

Machine photos
|
Comment & FAQ
1.You are a manufacturing factory or trading company?
A: We are a large-scale machinery manufacturing enterprise, primarily engaged in the supply of wheel loaders, forklifts, excavators, and related auxiliary equipment. We can also customize non-standard products according to customer requirements.
2. How long is the production lead time?
A: Generally it is 15-20 days for goods in stock. In the case of out of stock or large orders, it will take 30-60 days. QTY of the orders will be taken into consideration.
3. What is your warranty period?
A: One year or 2000 working hours, whichever comes first.
4. What is the terms of payment?
A: Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
5. Do you support OEM/ODM?
A: As a machinery manufacturer, we have a professional technical design department that can customize products according to customer needs, such as color, configuration and auxiliary equipment.
|
Company Profile
Shandong Loongsheen Heavy Industry Co.,Ltd is a professional heavy machines manufacturer and exporter concerned with the design,development and production kinds of machines. We have a branch company Shandong Loongsheen Import&Export Co.,Ltd. Our products is truck crane, excavator, road roller, skid steer loader and so on. We are located in Jining city Shandong province China, with convenient transportation access. Covering an area of 6,000 square meters, we now have over 600 employees and an annual sales figure that exceeds USD 8-15 million.
Five years professional experience in international trading and rich knowledge in construction machinery and heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers.
A well educated and friendly sales team with international vision, members of which can speak fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc.
Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price.
Excellent logistics services by sea, air, railway or road, ensuring timely delivery of consignments all over the world.
Comprehensive after-sales service, including one year warranty, spare parts supply, installment and maintenance, and training.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
We are looking forward to forming successful business relationships with new clients around the world in the near future.
We sincerely hope to cooperate develop together and build a good future with you. Loongsheen is your best choice for kinds of
machinery in China.
|
Data Sheet
| Bucket capacity (m³) | 0.07 | Maximum digging height (mm) | 3700 |
| Slewing speed (rpm) | 0-9 | Maximum unloading height (mm)
| 2440 |
| Maximum gradeability (°) | 35 | Maximum digging depth (mm) | 2400 |
| Maximum digging force of bucket (kN) | 18 | Maximum vertical digging depth (mm) | 2025 |
| Maximum digging force of stick (kN) | 11 | Maximum digging radius (mm)
| 4040 |
| Engine model | Customizable | Minimum turning radius (mm)
| 1610 |
| Power/speed (kW/rpm) | 14.2/2000 | External dimensions (length * width * height) | 3555*990/1330*2290 |
| System pressure (MPa) | 21.5 | Tail turning radius (mm)
| 650 |
|
Testing Quality

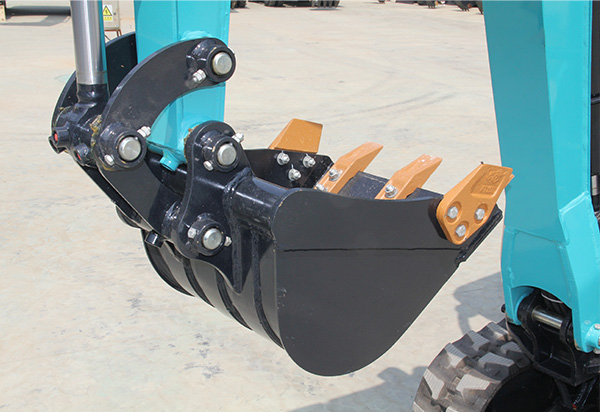

1）Standard configuration includes a large-capacity bucket; optional auxiliary hydraulic thumb trap.

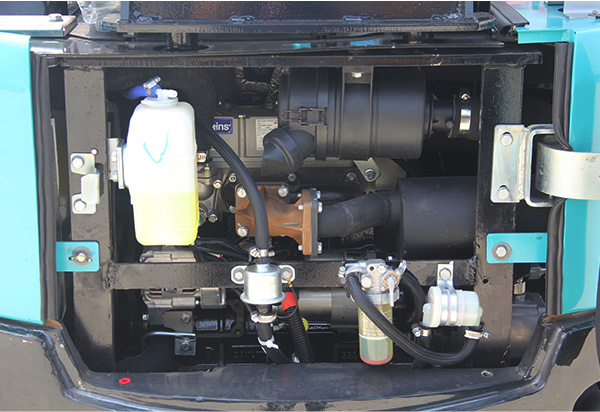

2）The large, openable back cover facilitates future maintenance and repairs.

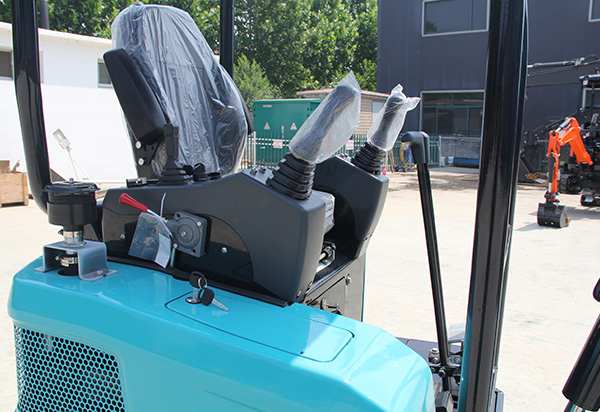

3）Ergonomically designed chair for a comfortable working environment, dual-sided hydraulic pilot control handles for easy operation.

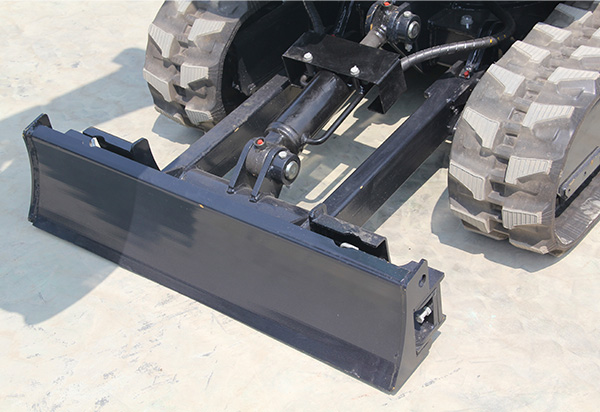

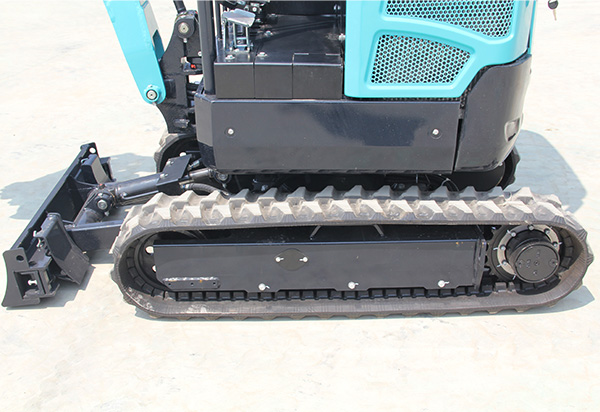

4）Thickened rubber tracks for greater wear resistance; adjustable hydraulic bulldozer blade for improved work efficiency.
